产品亮点：

高密度小型化设计：节点间距0.5mm，在紧凑的空间内实现高密度引脚布局，有效减少占用面积，同时确保信号传输的稳定性与高效性。

0.5mm pitch for tighter arrangement in limited space, at the same time, it ensures the stability and efficiency of signal transmission.

精准防错插设计：独特的防错插机制，确保连接器在快速对接过程中准确无误，大大降低误操作的风险，提升设备的安全性与可靠性。

It ensures the accurate connection in the process of rapid docking, greatly reducing the risk of misoperation, and improving the safety and reliability of the equipment.

高质量SMT焊接：结合专用钢网辅助刷锡膏，通过回流焊设备实现上板焊接，确保焊接质量的一致性与稳定性。

Combined with the special auxiliary solder paste, the upper plate welding is realized through reflow soldering equipment to ensure the consistency and stability of soldering quality.

耐高温低翘曲材料：选用高耐热、低翘曲的高性能材料，配合成熟的加工装配工艺，使连接器能够轻松应对极端工作环境，满足高温使用要求。

Combined with mature processing and assembly technology, the connector is easy to cope with extreme working environments and meet the requirements of high-temperature use.

产品特性

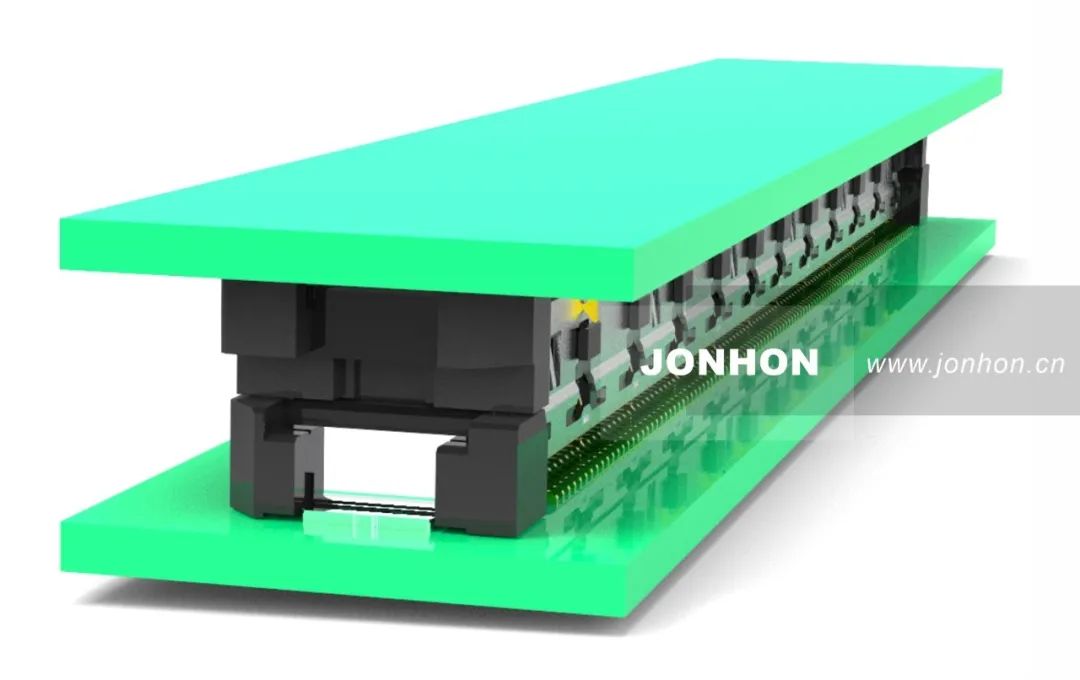

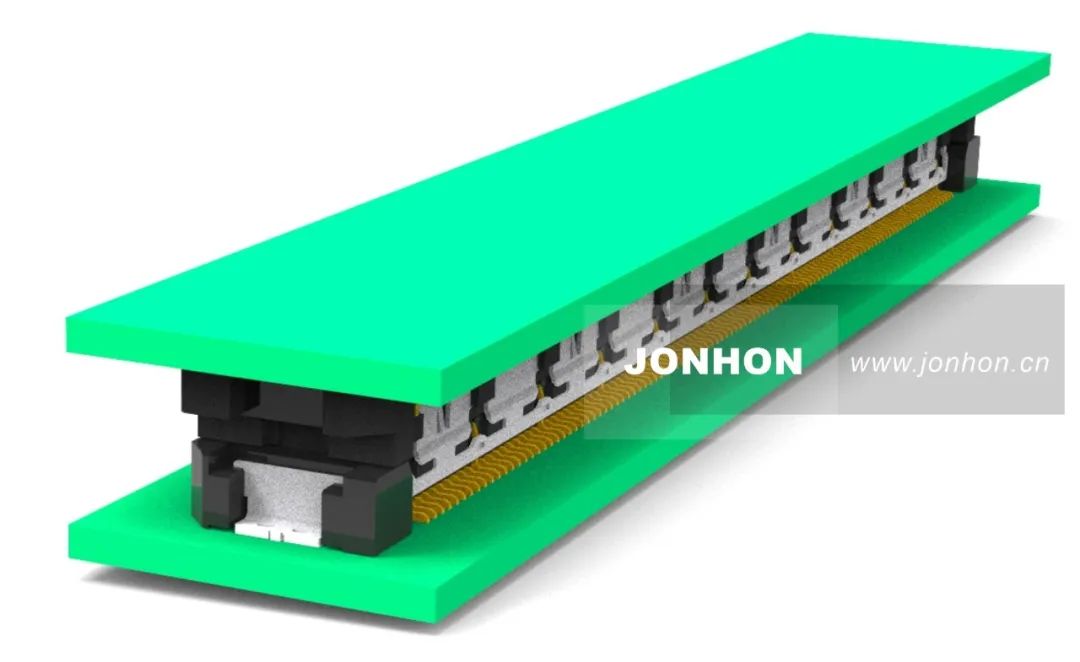

CQTL/CQSL系列连接器支持16Gbps高速传输速率，产品有5mm和8mm两种板间高度选项，适应不同板间高度的安装需求，提供220芯和440芯两种规格，满足不同场景下的数据传输容量要求，可确保在-55℃至125℃的极端温度条件下仍能稳定工作，电气性能优异，可保障电气安全与系统稳定运行。

The CQTL/CQSL series connector supports high-speed transmission rate of 16Gbps, with two board height options of 5mm and 8mm and two specifications of 220-core and 440-core to meet different requirements. It can ensure stable operation under extreme temperature conditions from -55℃ to 125℃, which can ensure electrical safety and stable system operation.

产品应用

服务器与数据中心：在服务器内部，用于连接主板与模组板（GPU、RAID卡、网络卡等），实现高速信号传输。

Server and data center: inside the server, it is used to connect the motherboard and module board (GPU, RAID card, network card, etc.) to achieve high-speed signal transmission.

通信基础设施：BBU、RRU、交换机、路由器等通信设备中广泛应用。

Communication infrastructure: used in BBUs, RRUs, switches, routers and other communication equipment.

工业控制与自动化：用于连接控制器、传感器和执行器等设备，实现实时数据采集、处理和反馈控制。

Industrial control and automation: used to connect devices such as controllers, sensors and actuators for real-time data acquisition, processing and feedback control.

医疗电子设备：在高端医疗设备中，如医学影像设备、手术机器人等，用于连接处理器、图像采集卡和显示单元等关键组件。

Medical equipment: used to connect key components (processors, frame grabbers and display units, etc.) in high-end medical equipment such as medical imaging equipment, surgical robots, etc.
